Impact of Clay Soil on Caboolture’s Pipe System

If you live in Caboolture, Morayfield, Upper Caboolture, or anywhere within the Moreton Bay region and have observed wet patches, sinking areas, persistent blockages, or cracks in your foundation, you might be concerned that reactive clay soil is harming your underground pipes.

The foundation in Caboolture consists of reactive clay, which expands when wet and contracts during dry periods, sometimes fluctuating in volume by over 20%. This incessant change exerts significant pressure on underground pipes during wet seasons, making them particularly vulnerable as the soil dries out. Older clay sewer and galvanised water pipes face heightened risks. A camera inspection can help detect damage early, while pipe relining often provides a practical solution without the need for garden excavation.

In Caboolture, your underground pipes are continually contending with the surrounding soil.

This ongoing conflict can result in serious pipe damage over time. By the time visible signs appear, the underlying issues may have been developing for quite some time.

What Causes Pipe Damage from Clay Soil Cycles?

There are four critical phases involved: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of these cycles, and the common drought-to-flood transitions experienced in Southeast Queensland. Each cycle exacerbates existing cracks and misaligns joints.

• The wet phase: Intense rainfall in Caboolture causes clay to absorb moisture and expand. This expansion exerts crushing pressure on pipes from all angles, potentially forcing joints together or pulling them apart. Rigid pipe materials are especially susceptible to cracking under such immense pressure.
• The dry phase: Once the rain stops and the clay dries, it contracts and pulls away from the pipes, creating voids and gaps. This leads to sagging, bending at joints, and the formation of bellies where water and sediment can collect.
• The repeat cycle: This expansion and contraction process occurs repeatedly with changing weather—often dozens of times a year in Caboolture’s climate. Each cycle heightens stress on the pipes and gradually widens existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells and periods of heavy rainfall. Following a prolonged dry spell, the clay shrinks significantly. When heavy rain arrives, the soil expands rapidly, placing pipes—which may be situated in loose, cracked ground—under sudden, extreme pressure.

Which Pipe Types Are Most at Risk of Damage?

Older clay sewer pipes (from properties constructed before the 1970s), galvanised steel water mains (from homes built prior to 1985), and concrete stormwater pipes are particularly vulnerable. Modern PVC pipes generally perform better, though inadequate backfill can still cause joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to continual stress.

• Clay pipes: Clay sewer pipes, especially those from homes built before the 1970s in Caboolture, are among the first to fail. Their brittle structure and heavy construction, combined with mortar joints, make them prone to cracking.
• Galvanised steel pipes: Utilised for water supply in homes built before 1985, these pipes are already compromised by internal corrosion and can crack as the surrounding clay soil shifts.
• Concrete stormwater pipes: While older stormwater systems can manage compression reasonably well, they often crack at joints during ground movement, allowing roots to invade through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. Significant ground movement can still lead to joint separation. Poor backfill during installation can heighten the vulnerability of PVC pipes.
• Copper pipes: Used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Warning Signs Indicate Underground Pipe Damage?

Be alert for wet spots during dry spells, sinkholes or soft areas, slow drainage, unpleasant odours in your yard, unusually lush patches of grass, trees heavily rooting in one area, and cracks in your slab. If you notice two or more of these indicators, arrange for a camera inspection promptly.

• Wet patches in the yard during dry spells—this may indicate water leaking from a damaged pipe, saturating the soil.
• Sinkholes or soft spots—these develop when soil washes into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant odours in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

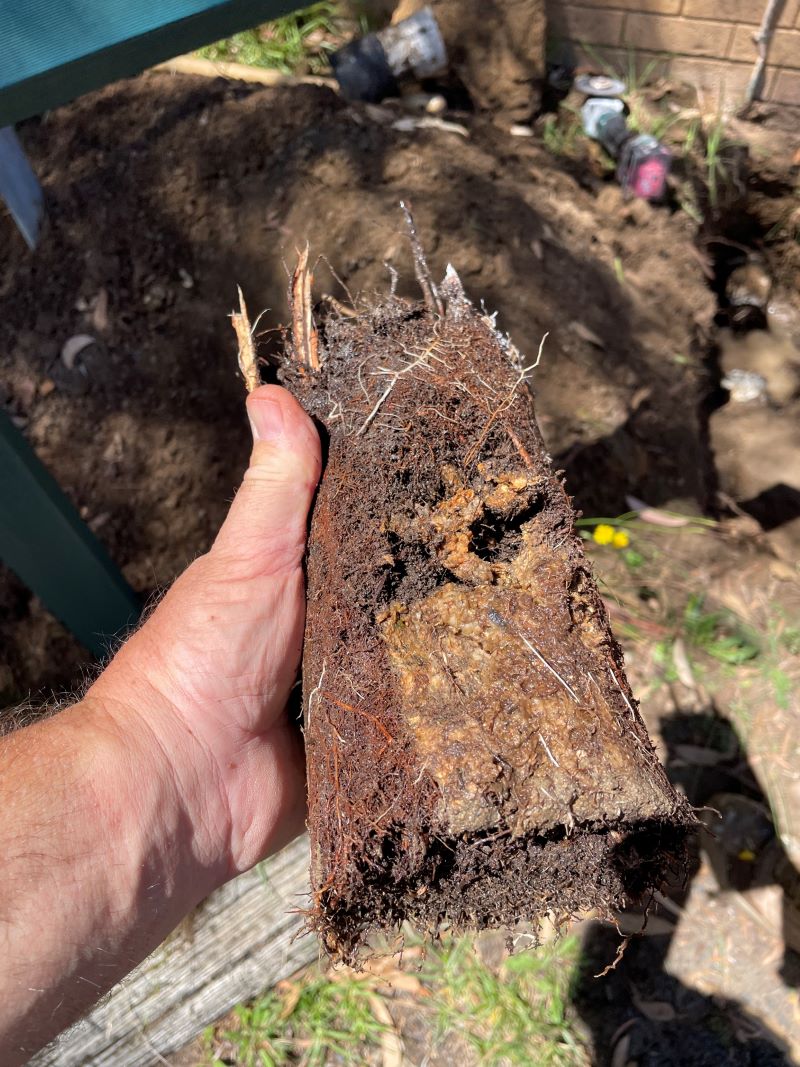

• Tree roots thriving in a specific area—trees often detect moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

How Do We Detect Pipe Damage?

We employ CCTV drain cameras to visually inspect the condition of sewer and stormwater pipes in real-time, identifying cracks, root intrusions, misaligned joints, bellies, and collapses. For water mains, we use acoustic and thermal leak detection methods, along with a comprehensive property assessment to predict potential future damage.

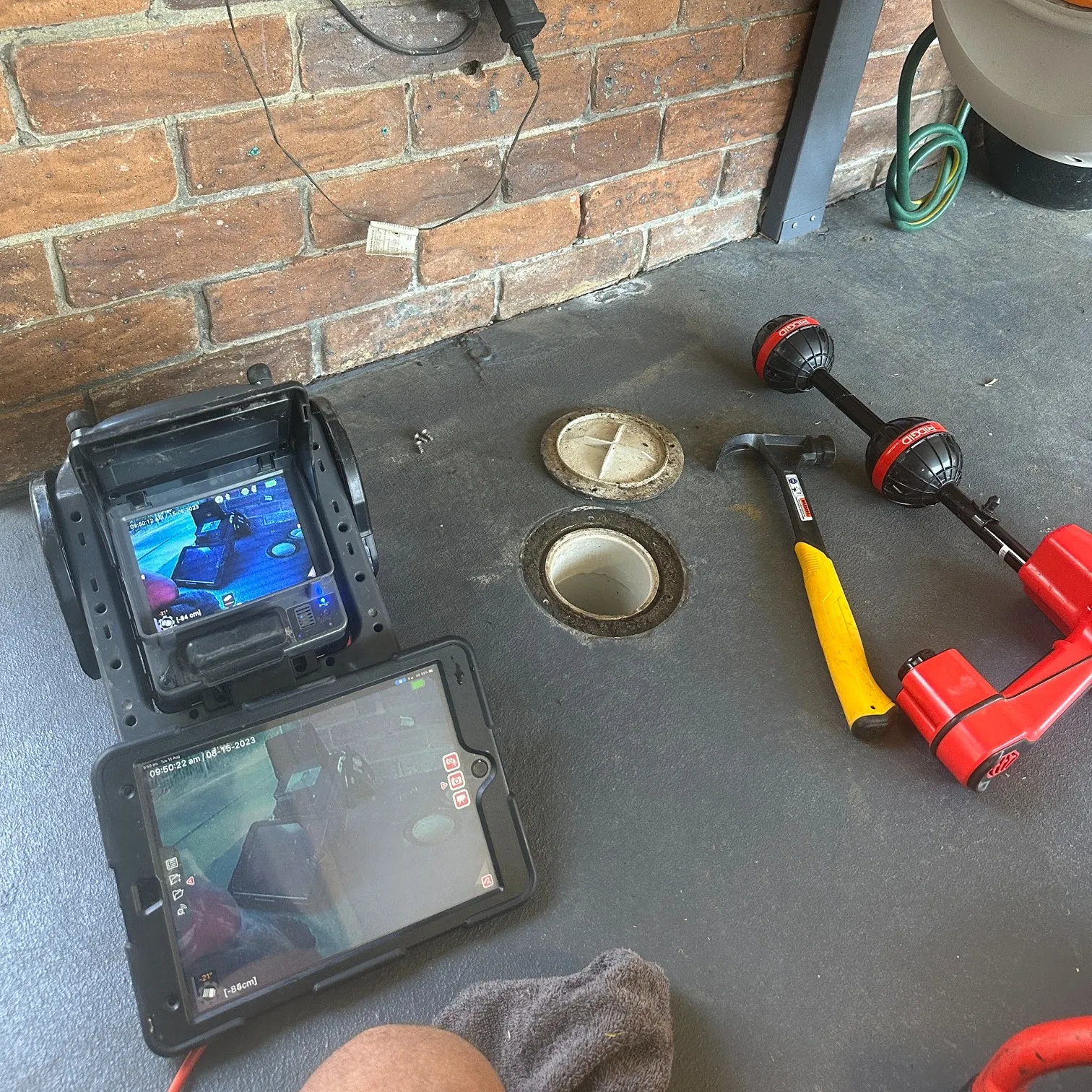

• CCTV drain camera inspection: A camera navigates through the pipe, providing live visuals of its condition. We can uncover cracks, breaks, root intrusions, misaligned joints, sediment build-up, and collapsed areas.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, enabling us to pinpoint issues without excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and anticipate where future issues may arise.

What Solutions Are Available for Addressing Pipe Damage?

Hydro jetting is used to clear immediate blockages. For cracked or root-invaded pipes, pipe relining provides an effective solution—this method does not require excavation. Installing French and spoon drains can help alleviate future ground movement pressure. Full excavation is only necessary in cases of total pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes situated in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to mitigate future issues caused by ground movement.

Why Is It Essential to Act Quickly to Prevent Collapse?

Damage to underground pipes in clay soil deteriorates over time. The situation does not improve; it worsens. A small crack today could lead to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately blocking the pipe entirely.

The most cost-effective repairs are those undertaken early. A camera inspection reveals the precise conditions underground, enabling you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling an appointment—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Mitigate the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not achievable. Regularly watering the area around your home during dry spells can help lessen the shrinkage cycle. Effective tree management can alleviate root pressure on pipes. Proper drainage systems also assist in decreasing soil saturation. Regular monitoring of pipes in reactive clay soil is crucial—camera inspections can identify issues early.

What Are the Costs Associated with Repairing Pipes Damaged by Clay Soil?

Repair costs vary depending on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most instances, yes. A relined pipe features a smooth, jointless interior that actually allows for better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Refrain from Reading This Article?

• If you are situated outside the Moreton Bay region—different soil conditions require different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you intend to carry out the plumbing work yourself—underground sanitary plumbing must be performed by a licensed plumber in Queensland.
• If you are searching for the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t commence excavation without first conducting a camera inspection.
