Concrete Floor Thickness for Car Hoist Installation

Key Factors to Consider for Effective Car Hoist Installation in Your Garage

If you are contemplating the installation of a car hoist in your garage, it is absolutely crucial to confirm that your concrete floor satisfies the necessary specifications. A strong and stable foundation is essential not only for the optimal functionality of the hoist but also for the protection of your vehicles and the safety of anyone operating the equipment. By ensuring thorough preparation and adhering strictly to installation guidelines, you can significantly enhance both the performance and durability of your hoist. This careful planning ultimately makes your investment more worthwhile and ensures a safe working environment.

Most car hoists require a concrete slab that is no less than 100mm (4 inches) thick. This measurement is critically important as it helps to distribute the weight evenly from both the vehicle and the hoist, thereby minimising the potential risk of cracking or sinking over time. For heavy-duty hoists, it is advisable to contemplate a thicker concrete slab, which may extend to 150mm (6 inches), in order to ensure optimal performance and safety during operation, especially under heavy loads.

Comprehensive Guide to Assessing Concrete Thickness for Your Car Hoist

The thickness of your concrete floor plays a pivotal role in ensuring the safe installation and effective operation of a car hoist. Various factors must be considered when determining the appropriate depth for your slab, ensuring that it can adequately handle the loads it will encounter during use. An understanding of these factors is essential to prevent costly errors and significantly enhance the safety of your garage setup, ultimately protecting both your investment and your well-being.

Understanding Load Capacity for Your Car Hoist Installation

Car hoists impose considerable stress on the concrete floor beneath them. Therefore, it is vital to comprehend the total weight that your concrete floor must support. This evaluation includes not only the weight of the vehicle but also the weight of the hoist itself, which can add substantial load to the floor. Additionally, considering other factors such as potential equipment or tools that may be used in conjunction with the hoist is important.

A standard passenger car usually weighs between 1,500 to 2,000 kg, while the hoist may add an extra 500 to 1,000 kg. Moreover, it is prudent to factor in additional weight as a safety buffer to ensure that the structure can withstand unforeseen circumstances, enhancing overall safety during operation.

For the majority of residential garages, a concrete thickness between 100 mm and 150 mm is generally adequate. However, if you plan on lifting notably heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation, thus safeguarding your equipment and vehicles.

Consulting with a structural engineer is a wise choice, as they possess the expertise to provide tailored advice and assist you in calculating the precise thickness required based on your unique circumstances and specific requirements.

Investigating Different Car Hoist Types and Their Concrete Thickness Needs

It is essential to recognise that different types of car hoists come with varying requirements concerning concrete thickness. Two-post lifts and four-post lifts are among the most popular options for homeowners seeking to incorporate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load and ensure safety during operation.

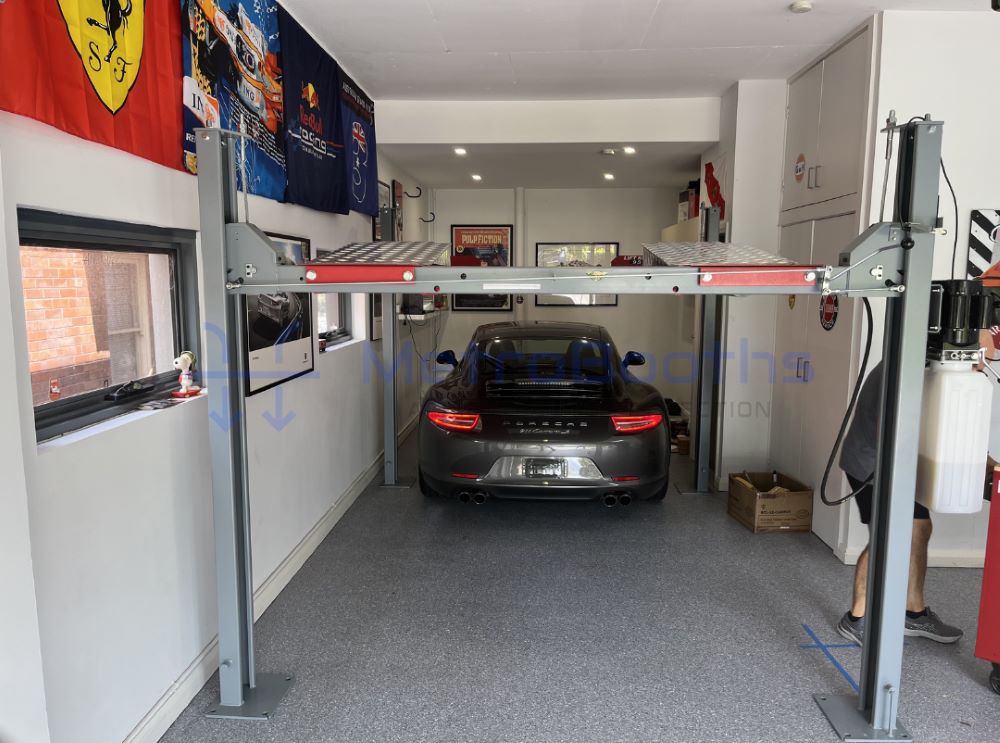

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to operate efficiently with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding significantly influences your planning and installation process, ensuring that you select the right hoist for your needs.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they will typically specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is crucial for achieving optimal performance and extending the lifespan of your equipment.

Keep in mind that these recommendations serve as general guidelines. Your specific needs may differ based on the configuration of your garage and the types of vehicles you intend to lift, thus requiring a tailored approach to installation.

The Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as important as its thickness when it comes to a successful installation. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads, especially relevant in the context of a car hoist installation.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, ensuring enhanced durability and safety.

Incorporating reinforcement techniques is crucial for significantly improving the durability of your concrete floor. The addition of steel mesh or rebar can greatly enhance the overall strength of your concrete slab, potentially allowing for a thinner slab while ensuring it effectively supports heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, a vital consideration for budget-conscious homeowners aiming to maximise their investment.

If you have concerns regarding potential cracking in your concrete, consider integrating fibres into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity and reliability of your installation.

Vital Installation Aspects for Ensuring Efficient Car Hoist Operation

When it comes to the installation of a car hoist, meticulous site preparation and consistent floor maintenance are of the utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and enhancing safety.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with your car hoist installation, it is imperative to confirm that your concrete floor meets all essential specifications. Most hoists require a slab that is at least 100mm thick and constructed using 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use, thus preventing any potential operational failures.

For new concrete pours, it is crucial to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, thus enhancing the overall safety of your installation.

Avoid positioning the hoist over expansion joints or weak areas of the concrete, as this can compromise the integrity of the installation. If you are uncertain about the strength and condition of your floor, consulting a professional who can accurately assess its condition is highly advisable to ensure safety and compliance.

Essential Ongoing Maintenance for Your Car Hoist Post-Installation

Once your car hoist is installed, it is vital to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, addressing any issues promptly to prevent larger complications that could affect the hoist’s functionality and safety.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues that compromise safety. Additionally, using protective mats under the lift arms can help minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly checking the tightness of the anchor bolts is also crucial, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage, thereby protecting both your investment and your vehicles.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly prolong the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of car lifts.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may necessitate thicker slabs for safe operation, which is crucial for ensuring safety.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is prudent to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and compliance with safety standards.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, adding a new layer of concrete may be necessary to achieve the appropriate depth for safe operation and reliability.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, thus safeguarding your investment.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements to ensure safety.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist
